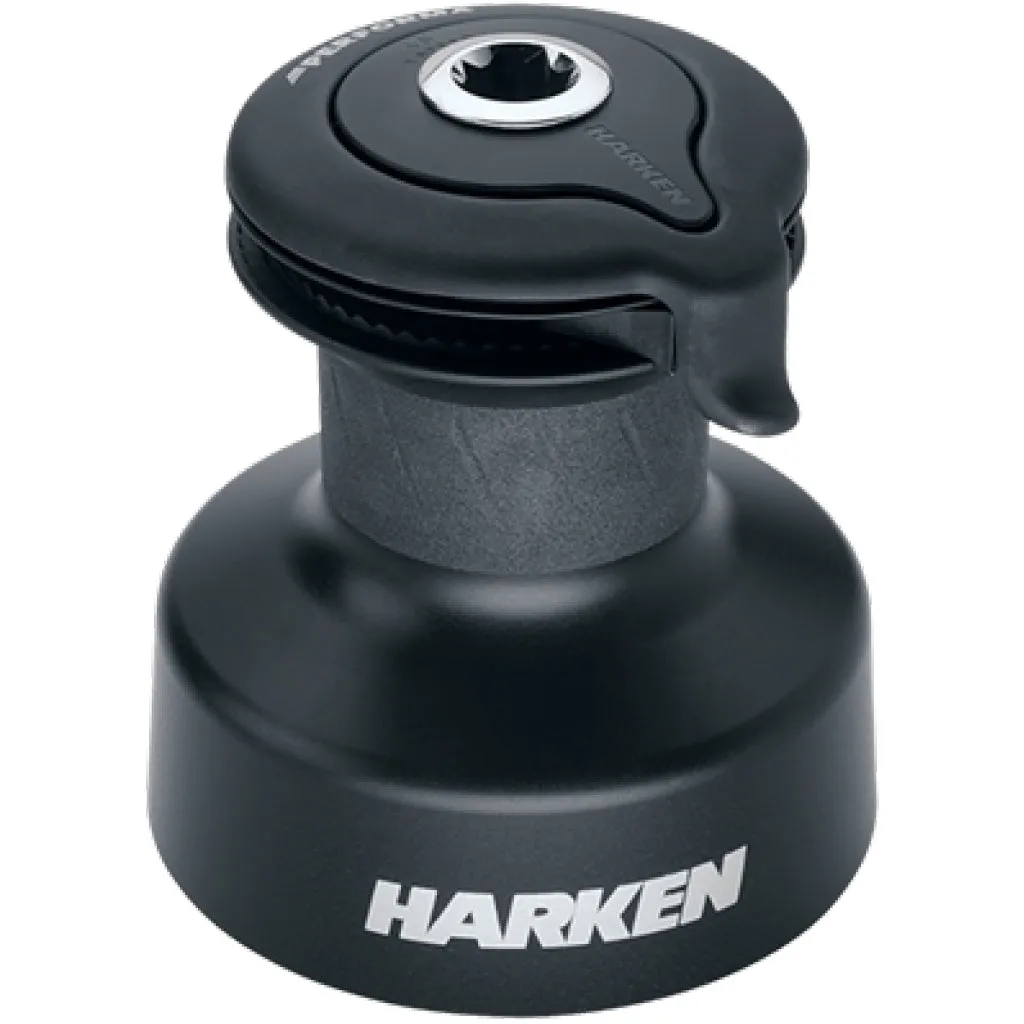

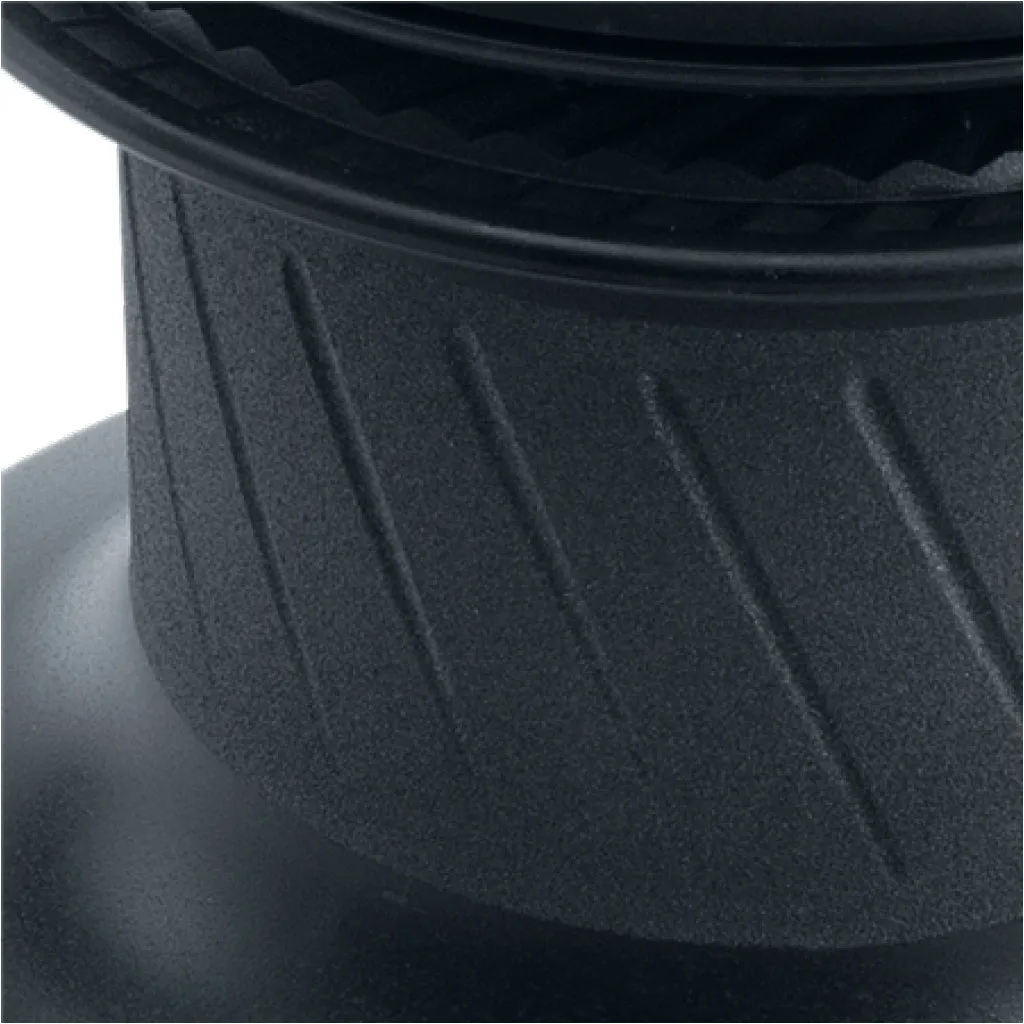

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line.
The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Specifications
- Configuration: Self-tailing
- Speed: 2
- Drum Ø (mm): 80 mm
- Drum Ø (in): 3 1/8 in
- Base Ø (mm): 157 mm
- Base Ø (in): 6 3/16 in
- Height (mm): 175 mm
- Height (in): 6 7/8 in
- Weight (kg): 3.8 kg
- Weight (lb): 8.4 lb
- Line entry height (mm): 82 mm
- Line entry height (in): 3 1/4 in
- Minimum line Ø (mm): 8 mm
- Minimum line Ø (in): 5/16 in
- Maximum line Ø (mm): 12 mm
- Maximum line Ø (in): 1/2 in
- Fastener circle (in): 4 7/8 in
- Fastener circle (mm): 123 mm
- Fasteners (mm): 6 HH, 6 SH mm
- Fasteners (in): 1/4 SH in
- Number of fasteners: 5
- Gear ratio - 1: 2.13
- Gear ratio - 2: 6.28
- Power ratio - 1: 13.50
- Power ratio - 2: 39.90
